DXLS

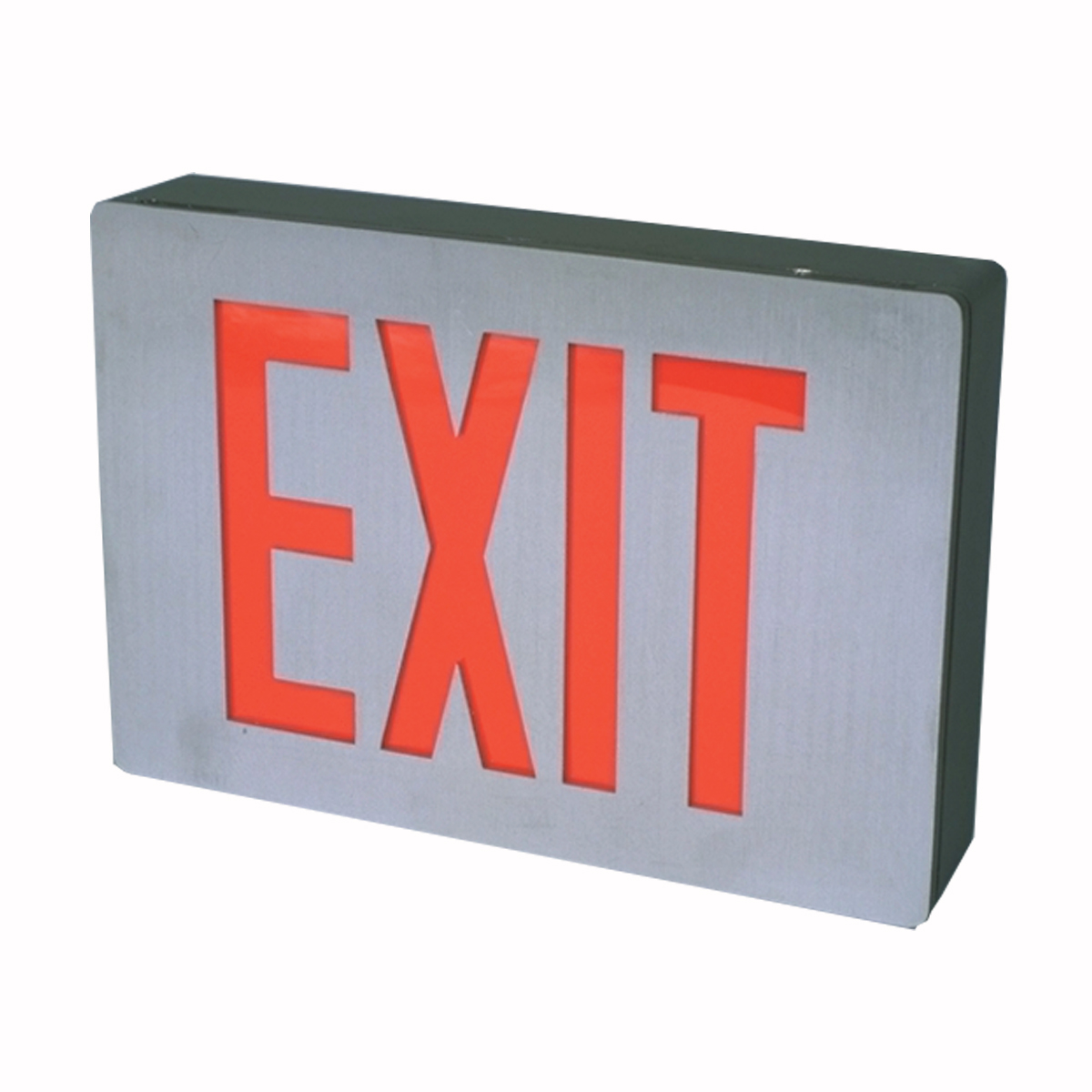

Aluminum Die Cast LED exit sign
aluminum die cast led exit sign

DXLS / EDXLS

Dimensions

DXLS/EDXLS

Height: 8.3 ”
Width: 12.0″
Depth: 2.3″

CANOPY ONLY

Height: 4.7 ”
Width: 4.7 ”
Depth: 0.8 “

NEW YORK CITY

Height: 11.0 ”
Width: 14.5″
Depth: 2.3″



UL 924 Listed
lifetime-warranty
Made in USA

Series Features

  • 120/277 VAC Operation
  • Maximum Input Rating (120 or 277VAC)
    Standard 1.7 Watts
    DS Option 3.5 Watts
  • Light-Emitting Diodes – 25+ Year Life
  • Illuminates with Uniform Color and Brightness
  • Indirect Placement for Diffused Legend Output
  • Increased LED Brightness Level in Emergency Mode
  • Contemporary Styling
  • Canopy Standard on Double-Face Signs
  • Die Cast Aluminum Construction
  • Thin-Edge Black Housing
  • Brushed Aluminum Stencil Face
  • Directional Chevron Snapouts
  • UL Listed

Additional Emergency Unit Features

  • Integrated Solid State System
  • Constant Current, Controlled Automatic Charger Circuit
  • Low-Voltage Battery Cutoff
  • Brownout Sensitivity
  • Sealed Nickel Cadmium Battery
  • 5-Year Shelf Life
  • 10-Year Battery Warranty
  • Maintenance-Free
  • 3+ Hours Illumination in Emergency Mode
  • Test Switch
  • Red (Power On) Indicator

*Longer Illumination Times Available. Consult Factory.

Options - Add Suffix to Catalog Number

-SuffixOption Description
-6(2) 6VDC Lamps for AC/6VDC Remote Operation
-12(2) 12VDC Lamps for AC/12VDC Remote Operation
-CPYCanopy (For Single-Face Signs)
-DMPDamp Location Listing (Damp Label)
-HIHigh Intensity LEDs
-TPTamper-Proof Screws
-DSDouble LED Strips for Increased Illumination or 2 Independent AC Circuit Operation
-NYNew York City Approved with 8" Letters
-RMBRecessed Mount Trim Kit, Black
-RMWRecessed Mount Trim Kit, White
-SLSlave (Requires Single-Face EXFLD as Power Source)
-REC/SRecessed Mounting for Slave Only
-REC/MRecessed Mounting for Master Only
-REC/MSRecessed Mounting for Master and Slave

Accessories - Order Separately

SeriesDescription
63Wire Guard (for Single-Face Back Mount Only)
VDSVandal-Deterrent Shield (for Single- Face Back Mount XP Only)

Ordering Information

EDXLS

1

R
W
W
-DS

Series

DXLS – AC
Only
EDXLS
– Emer.

# of Faces

1
2

Letter Color

R – Red
G – Green

Stencil Color

W – White
B – Black
A – Aluminum

Housing Color

W – White
B – Black

Options

Factory Options
