TCSAGM

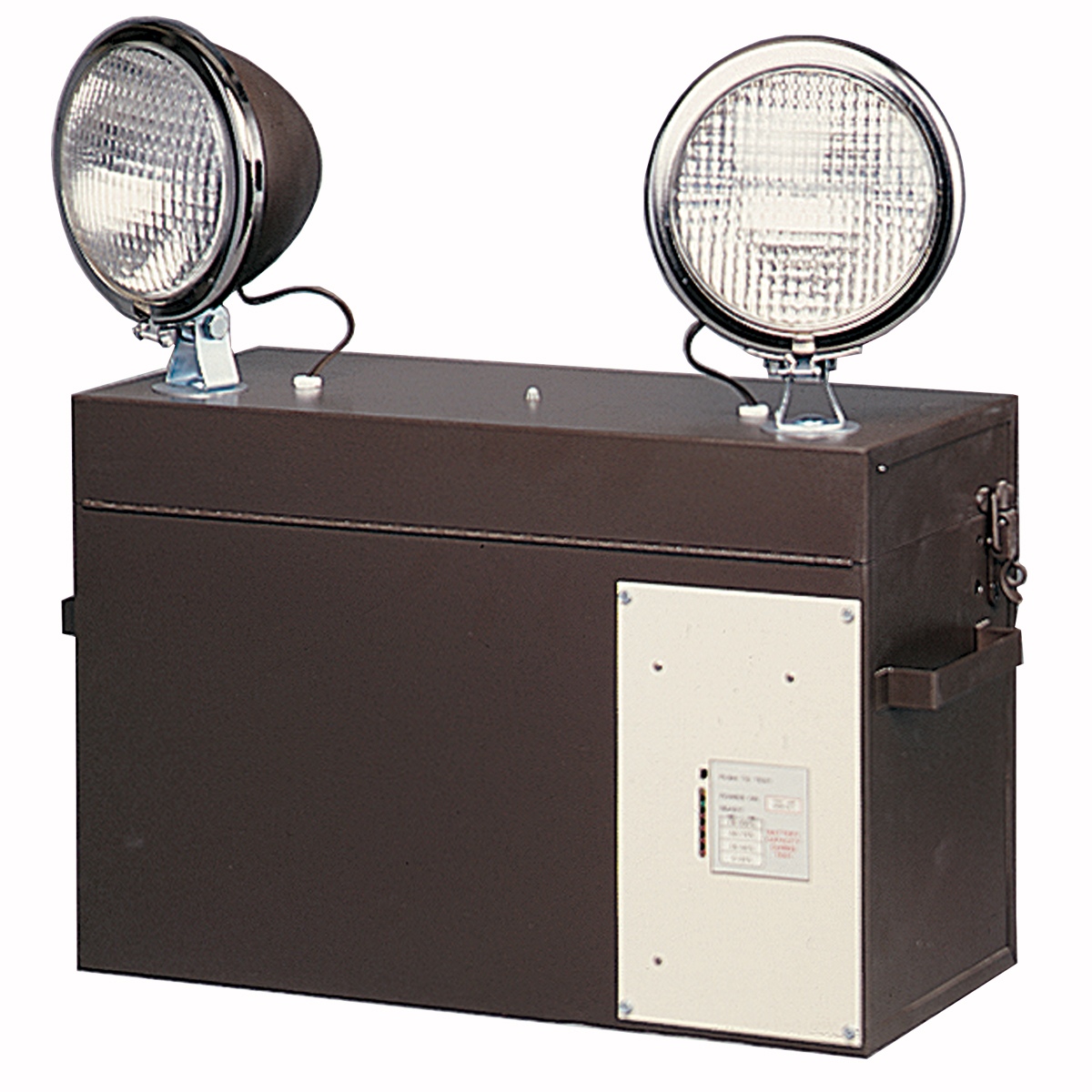

Shown in Standard Two-Tone Beige & Cocoa Finish

Dimensions

Height: 20.5″
Width: 18.5″
Depth: 8.5″

UL 924 Listed
Made in USA
lifetime-warranty

Rugged steel construction is combined with state-of-the-art LED status indicators, making the TCSAGM Series an ideal choice for demanding industrial applications. A slide-out modular control assembly allows for quick and easy product upgrades.

Series Features

  • Integrated Solid State System
  • Three-Rate, Controlled, Automatic Charger
  • Fused AC Input & DC Output Circuit Protection
  • Low-Voltage Battery Cutoff
  • Brownout Sensitivity
  • Single-Voltage Transformer for 120VAC Operation
  • Maximum Input Rating
    120VAC 60 Hz 0.50 Amps
    277VAC 60 Hz 0.23 Amps
  • PAR-46 Sealed Beam Lamps STD Lamp: See Unit Information
  • Sealed Lead Acid AGM Battery
  • 12-Volt Operation
  • Maintenance-Free
  • Operating Temperature Range (-40°F – +122°F)
  • Unparalleled Deep Discharge Recovery
  • AGM Separators Resist Oxidation & Retain Electrolyte
  • Rugged 20-Gauge Steel Housing
  • Top End Battery Access
  • Full-Length Piano Hinge with Lock Hasp
  • Integral Carrying Handles
  • Two-Tone Powder-Coat Finish (Beige & Cocoa) Standard
  • Slide-Out Control Chassis
  • Test Switch
  • Battery Capacity Indicator: Incremental LED Panel Indicates Current Battery Charge/Discharge Status
  • Amber (AC On) LED Indicator
  • UL Listed

Unit Information

Model Number

Std. Lamp Watt

Watts per Hour

Replacement Battery

1.5

2

4

8

16

20

24

L2TC12SAGM40

3.8

120

90

45

23

12

9

8

(1) SAGM1240

Illumination is rated to 87.5% of normal system voltage and recharge to full capacity within 48 hours.
NEC requires 1.5 hours of emergency illumination.

Options - Add Suffix to Catalog Number

-SuffixOption Description
-GYIndustrial Grey Finish
-P2Cord & Plug for 120VAC Input
-277277VAC Input
-BDSBattery Disconnect Switch
-QCQuik-Chek™ Remote Test & Time Delay
-TDTime Delay - Adjusts 1-60 min.

Ordering Information

L

2

TC
12
SAGM
40
-BDS

LED Lamp Prefix

Lamp Heads on Unit

(0,1,2,3)

Series

DC Battery Voltage

(12 – 12Volt)

Battery Type

(SAGM – Sealed Lead AGM)

Battery Amp/Hour
Options
