HE
Hazardous Emergency lighting

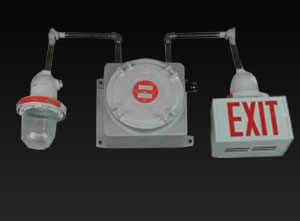

Hazardous Area Emergency Exit Lighting

The HE Series is designed for use in Class I, Division I hazardous areas. Lighting fixtures and exit fixtures are available for mounting directly to the housing or can be remotely mounted.

Dimensions

Height: 12.0″
Width: 15.0″
Depth: 8.8″

Made in USA

6-Volt Hazardous Area Emergency Lighting Power Units Complete with Batteries and Chargers

harsh environment emergency light

HE6N7-1EP-LED
Single-head unit with
3-watt LED lamp

HE6N14-1EP-LED
Single-head unit with
3-watt LED lamp

hazardous area exit sign

HE6N7-1XP1R-LED
Single exit fixture with
3-watt LEDlamp

HE6N14-1XP1R-LED
Single exit fixture with
3-watt LED lamp

HE6N14-2EP-LED
Double-head unit with
3-watt LED lamp

HE6N21-2EP-LED
Double-head unit with
3-watt LED lamp

HE6N14-1EP-1XP1R-LED
Single-head & single exit
w/3-watt LED lamp

HE6N21-1EP-1XP1R-LED
Single-head & single exit
w/3-watt LED lamp

For power units with lighting heads and/or exit fixtures mounted directly to the housing, choose from the models listed above. These units are supplied with a swivel elbow for each lighting fixture. Conduit is to be supplied by the installer.
* Exit Signs are lit in DC power only.

Series Features

NEC ENVIRONMENT RATINGS

  • Meets or Exceeds UL Specifications for Use in the Following Areas:
    Class I, Division I, Groups C & D
    Class II, Division I, Groups E, F & G
    Class III
  • Integrated Solid State System
  • Controlled, Automatic Charger
  • Dual-Voltage Transformer for 120/277 VAC Operation
  • LED
  • Sealed Nickel Cadmium Battery (N)
  • 6- or 12-Volt Operation
  • Maintenance-Free
  • Completely Self-Contained Operation
  • Heavy Cast, Copper-Free Aluminum Housing
  • Sealed Test Switch
  • Power On Indicator
  • Pre-Drilled Hole for AC Power
  • UL-Listed Enclosures and Fixtures

Unit Information

Model Number

Watts per Hour

1.5

2

3

4

5

6

7

8

HE6N7

18

14

9

7

HE6N14

36

28

18

14

11

9

8

7

HE6N21

54

42

27

21

17

13

11

10

HE6N28

72

56

36

28

23

18

16

14

HE12N7

36

28

18

14

11

9

8

7

HE12N14

72

56

36

28

23

18

16

14

For remote fixture applications, use one of the above power units and remote fixtures /exits on page 53. Remote fixtures/exits must be the same DC voltage and total remote wattage must not exceed the 1.5-hour capacity of the above power unit. 12-volt equipment is suggested for longer wire runs.

Ordering Information

HE
12
N
14
-1EP-1XP1R-LED
Series

DC Battery Voltage

(6 – 6 Volt)
(12 – 12 Volt)

Battery Type

(N – Ni-Cad)

Battery Amp/Hour

Options

(EP – Light Head)
(XP – Exit Sign)
