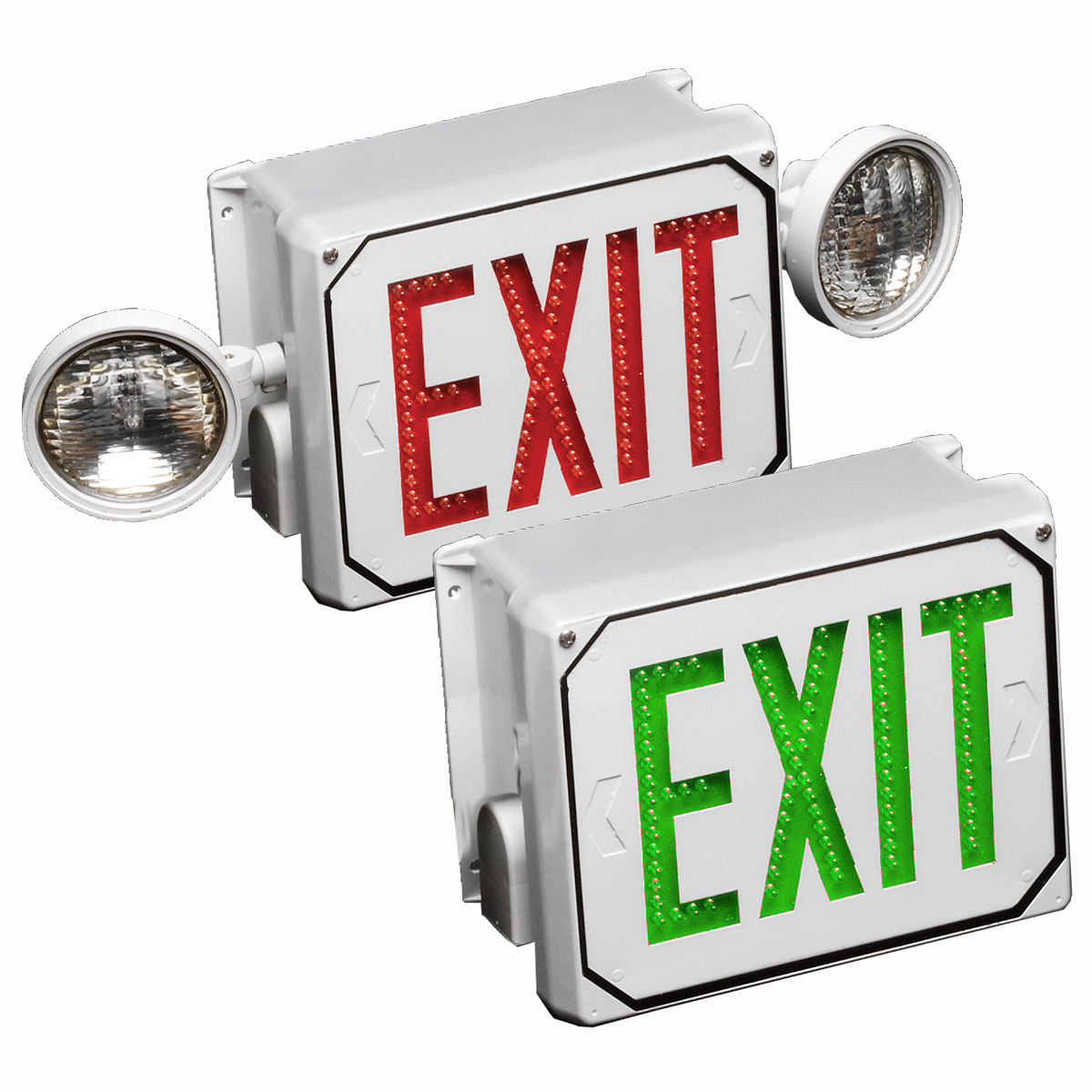

4X
NEMA LED Exit Sign

E4XL1RW

Dimensions

Height: 9.5″
Width: 11.5″
Depth: 5.5″

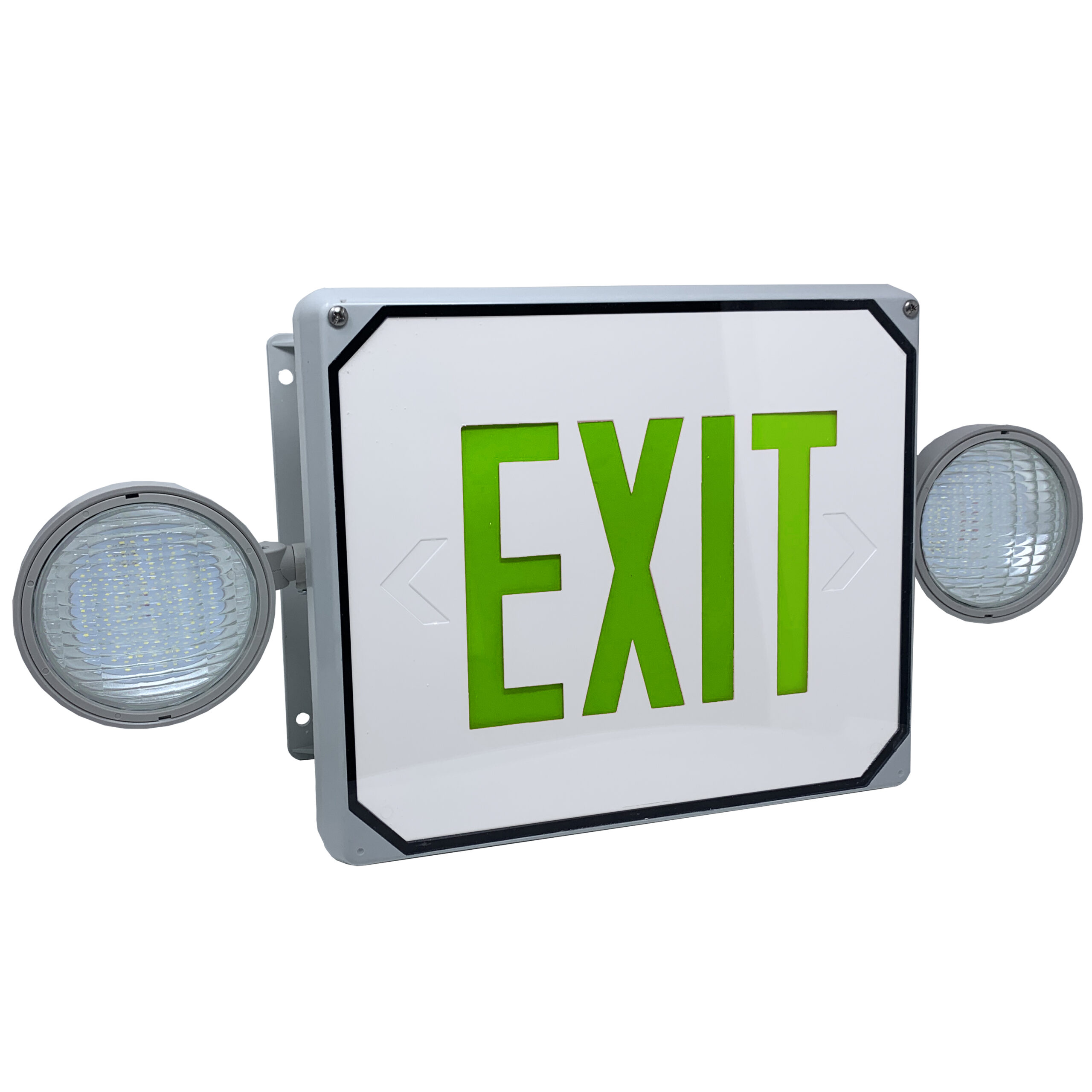

NEMA 4X Emergency Exit Sign

H2E4XL1RW

Dimensions

Height: 9.5″
Width: 21.6″
Depth: 5.5″

UL 924 Listed
lifetime-warranty
Made in USA

Series Features

NEMA APPLICATIONS

  • All Units Satisfy the Requirements of NEMA 1, 2, 3, 3R, 4 & 4X Enclosures
  • Choice of Light Source
    LED (Indirect View) 25+ Years
    LED (Direct View) 25+ Years
  • Designed for Use in Corrosive, Dirty or Damp Environments
  • Back Mount Standard
  • Universal Stencil Face
  • Directional Chevron Snap outs
  • Industrial Grey Fiberglass Housing
  • Meets or Exceeds UL 924

Additional Emergency Unit Features

  • Integrated Solid State System
  • Constant Current, Automatic Charger
  • Low-Voltage Battery Cutoff
  • Brownout Sensitivity
  • AC Lockout (Line Latching)
  • Sealed Battery
  • 6-Volt Operation
  • Maintenance-Free
  • Test Switch
  • Red (Power On & Charge) Indicator

Unit Information

Series
Light
Source
Standard Voltage
Max Input Watts
(120VAC)
Max Input Watts
(277VAC)
Illumination Time
(Hrs.)
Replacement Battery

Less
Heads

With
Heads

Less
Heads

With
Heads

Less
Heads

With
Heads

Less
Heads

With
Heads

AC Only
4XL
LED (Indirect)
120/277V

1.7W

N/A

1.7W

N/A

N/A

N/A

N/A

N/A

4XLD
LED (Direct)
120/277V

3.6W

N/A

3.6W

N/A

N/A

N/A

N/A

N/A

Emergency
E4XL
LED (Indirect)
120/277V

1.7W

N/A

1.7W

N/A

3.0

1.5

N71

S610SL

E4XLD
LED (Direct)
120/277V

6.8W

N/A

6.8W

N/A

3.5

1.5

N51

S68

Options - Add Suffix to Catalog Number

-SuffixOption Description
-277277VAC Input
-HTRHeater
-MKMounting Kit for End or Ceiling Mount
-QCQuik-Chekā„¢ Remote Test & Time Delay (For Emergency Signs Only)

Ordering Information

H

2

E4XLD

1
R
W
-QC

Halogen Lamp

Prefix

Lamp Heads on Unit

Blank – None

Series

4X-AC/INC.
4XP-AC/FL
4XL-AC/LED
4XLD-AC/LED
E4X-EM/INC.
E4XP-EM/FL
E4XL-EM/LED
E4XLD-EM/LED

# of Faces

1

Letter Color

R – Red
G – Green

Housing Color

W – White
B – Black

Options

Factory Options
