PH

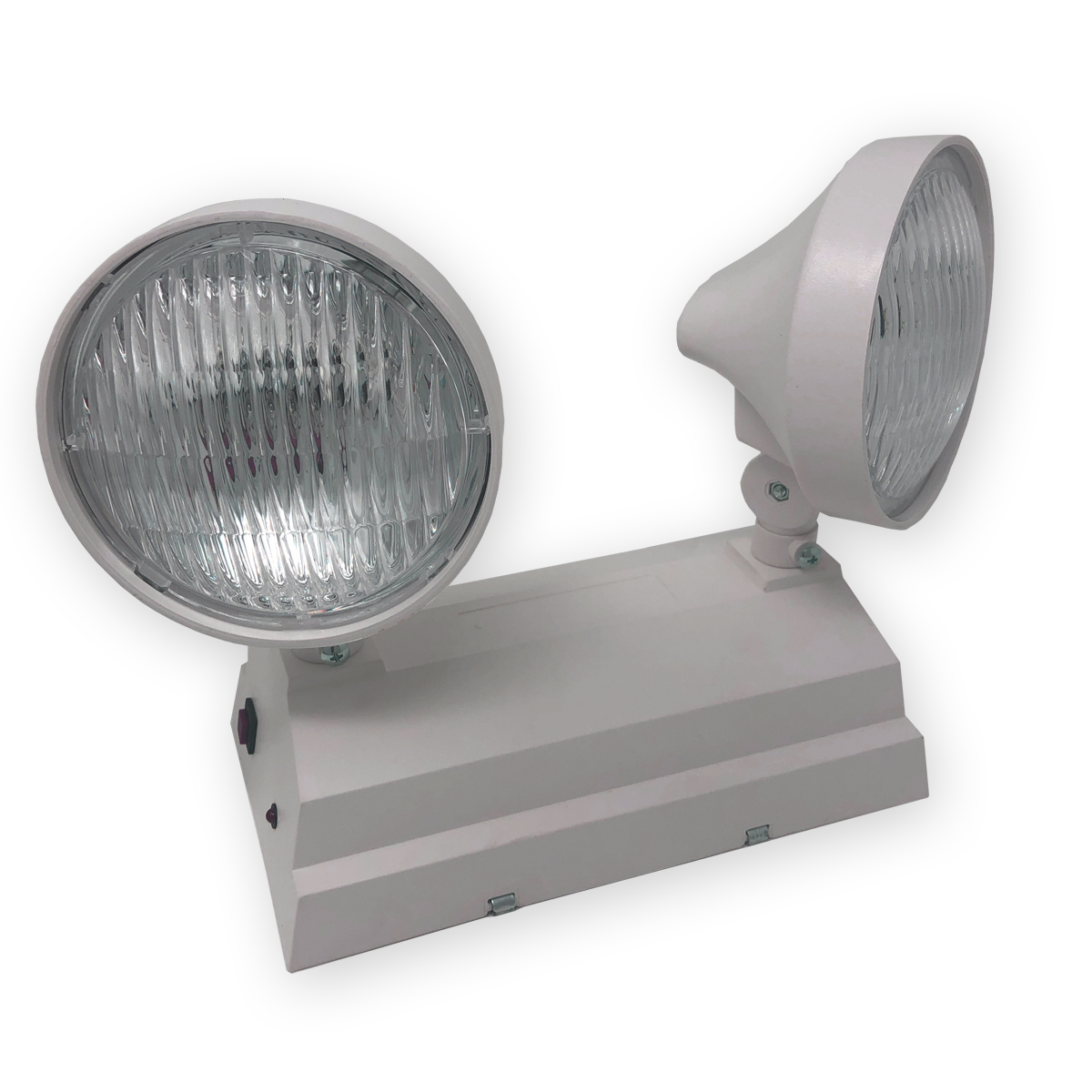

Designed so that lamp head assemblies can be adjusted to the “UP” position or to the sides.

Dimensions
Height: 7.25″
Width: 11.25″
Depth: 7.00″

UL 924 Listed

Series Features

  • Integrated Solid State System
  • Multi-Rate, Controlled, Automatic Charger
  • Lock Out (Automatic Battery Connect)
  • Low-Voltage Battery Cutoff
  • Brownout Sensitivity
  • Dual-Voltage Transformer for 120/277 VAC Operation
  • Maximum Input Rating
    120VAC 60 Hz .20 Amps
    277VAC 60 Hz .20 Amps
  • High-Intensity Tungsten Lamps, 6-Watt
  • Sealed Lead Calcium Battery
  • 6-Volt Operation
  • Maintenance-Free
  • Compact Design
  • Flame-Retardant Noryl 190® Housing
  • Universal-Mount, Galvanized Steel Backplate
  • High-Impact, Mist-White Finish
  • Wall or Ceiling Mount
  • Red (Power On) LED Indicator
  • Test Switch
  • Damp Location Listed
  • UL Listed

Unit Information

Model Number

Std. Lamp Watt

Watts per Hour

Replacement Battery

1.5

2

3

4

5

6

7

8

2PH6S5

6

12

9

6

(1) S65

Illumination is rated to 87.5% of normal system voltage and recharge to full capacity within 48 hours.
NEC requires 1.5 hours of emergency illumination.

Options - Add Suffix to Catalog Number

-SuffixOption Description
-P2Cord & Plug for 120 VAC Input

Ordering Information

2PH6S5
Lamp Heads on UnitSeriesDC Battery VoltageBattery Type (S - Sealed)Battery Amp/Hour
