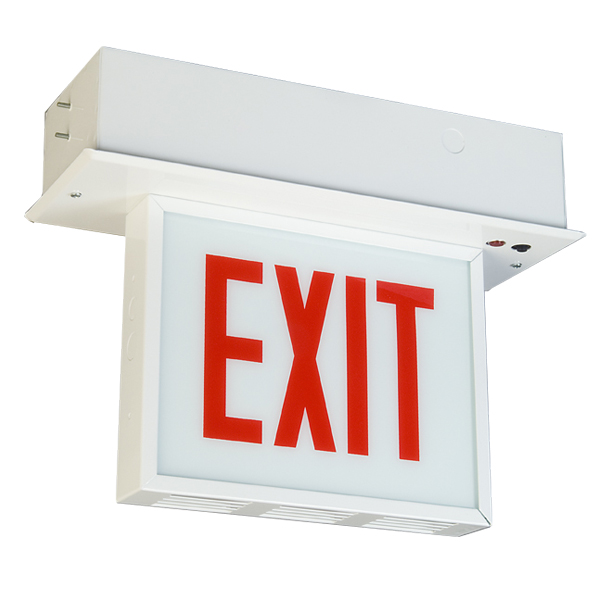

ECXL / ERCXL
Chicago Approved High Capacity Exit Sign
The ECXL series is a classic, Chicago Approved steel Exit meant for high capacity and remote capability.
- High Capacity, Chicago Approved Exit Sign
- Dual Voltage 120/277 VAC
- Open-Face Glass Panel
- Silk Screen Letters
- Ceiling, End, or Back Mount
- Canopy & Recessed available
- 20-Gauge Steel Housing
- White Powder-Coat Finish
- White LED 3.7 Watts
- Sealed Lead Calcium Battery
- 6V Operation
- Test Switch with Red Power on Indicator
- UL Listed
SPECIFICATIONS
Dimensions
ECXL:
Height: 16.0˝ / Width: 12.3˝ / Depth: 2.8˝
ERCXL:
Rough in Opening 5.8˝ x 16.8˝
Construction
20-Gauge Steel Housing, Open-Face Glass Panel with Silk Screen Letters.
Battery
Sealed Lead Calcium Battery, 6V Operation.
Lamps
White LED 3.7 Watts
Approvals
UL Listed, Chicago Approved
